BENNE Editor

The BENNE Editor is a Visual Studio Code extension and the recommended way to build BENNE games. It gives you a visual tree of your entire game, live previews that render exactly like the shipped runtime, property inspectors, polygon editing, a puzzle chart editor, and one-click scaffolding for rooms, characters, GUIs, inventory items, dialogs and handlers.

While every piece of content is ultimately plain JSON and TypeScript that you can edit by hand, the editor removes the tedium: it places files in the right locations, keeps ids consistent, wires up script handlers, and shows you what your game looks like without leaving VS Code.

This page is a tour of the editor itself. For step-by-step guides to making each kind of content, see:

• Creating a room: art, props, walkable areas, hotspots, points, regions and characters.
• Creating a character: animations, feet, talk points and placing them in rooms.
• Creating an inventory item: icons, combining and using items.
• Creating a dialog: options, replies and branching conversations.
• Creating a GUI: controls, fonts and menus.
• Puzzle dependency charts: planning puzzles in the chart editor.

Overview

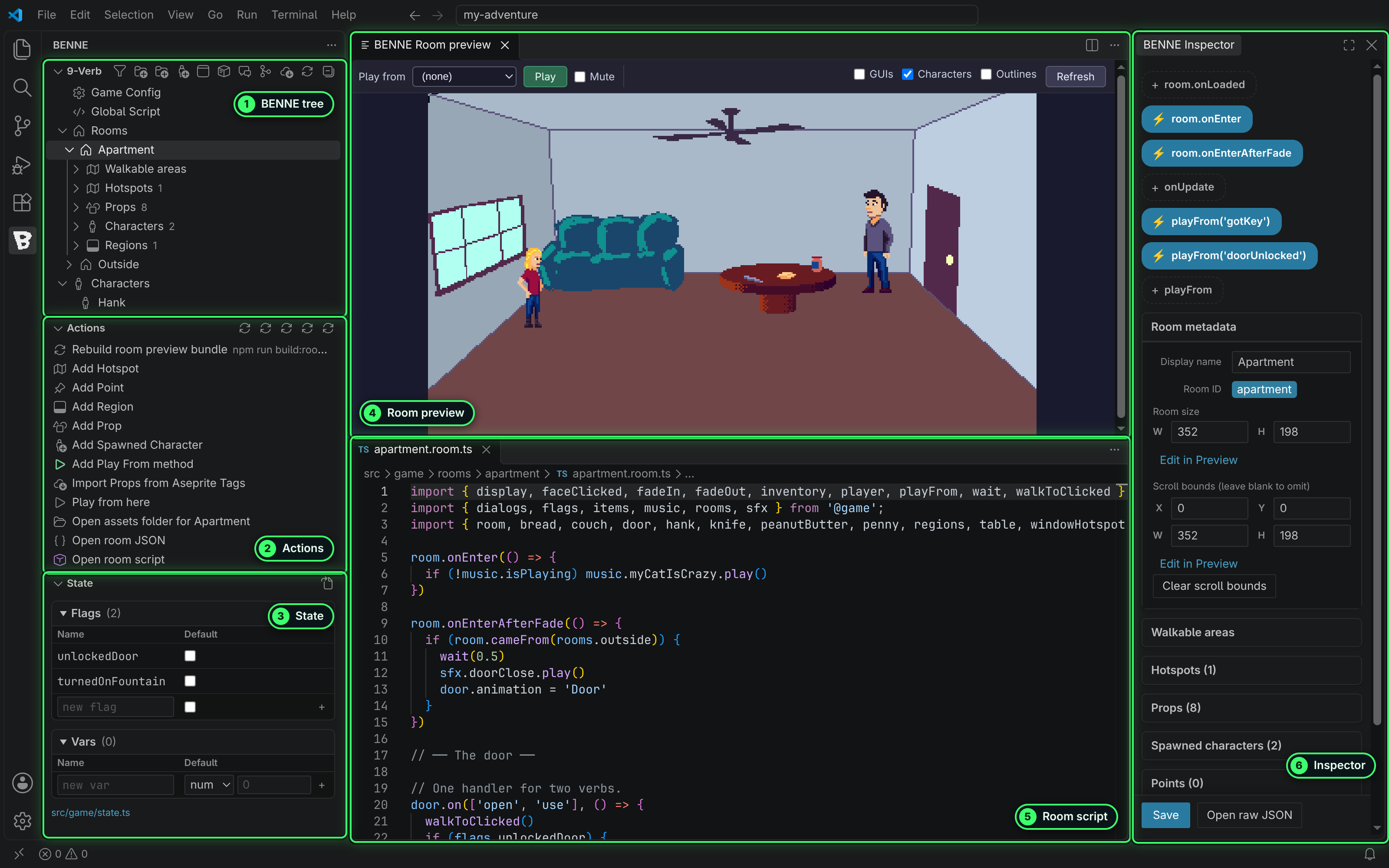

The 9-verb template with its apartment room selected: its preview, its script and its properties open together.

The 9-verb template with its apartment room selected: its preview, its script and its properties open together.

When the extension is installed, a BENNE icon appears in the VS Code Activity Bar. Clicking it reveals the BENNE sidebar, which contains three views:

• The BENNE tree, titled with your game's name from game-config.json: a structured outline of your whole game: rooms, characters, GUIs, inventory, dialogs and puzzle charts, each expandable down to individual props, hotspots, regions, points, walkable areas and controls.
• Actions: buttons for rebuilding preview bundles, plus workspace-level helpers such as Process Game Voice IDs.
• State: your game's flags and variables, with their defaults (see State).

The Inspector, which shows editable properties for whatever you've selected in the tree, sits on the other side of the window in the Secondary Side Bar. Selecting something in the tree opens the Secondary Side Bar on the Inspector if it's closed or showing another view, such as Chat. Turn that off with the benneEditor.layout.revealInspector setting. BENNE: Show BENNE Sidebar opens both. Like any VS Code view, you can drag any of them somewhere else.

Previews are the real renderer

The editor's previews use the same Phaser renderer configuration as the shipped game and BENNE Play. What you see in a room, character, GUI, or inventory preview is what your players see: same scaling, pixel snapping, and bitmap font rendering.

The BENNE tree

The main BENNE tree is your map of the game. At the top is the workspace (your game project), and beneath it:

• Game Config opens game-config.json (see Game configuration).
• Global Script opens globalScript.ts, home of the fallbacks.
• Rooms: each room expands to its props, hotspots, points, regions, walkable areas (with their holes) and characters.
• Characters, GUIs (with their controls), Inventory, Dialogs and Puzzle Dependency Charts.

Selecting things

Selecting something in the tree arranges the window for it: its preview opens on top, its script underneath, and its properties in the Inspector. Selecting a prop, hotspot or region inside a room selects it in the room preview too, ready to edit. Selecting something new closes the editors that were open for the previous selection. With benneEditor.layout.closePanelOnOpen, it also closes the bottom panel to give the preview and script the full height.

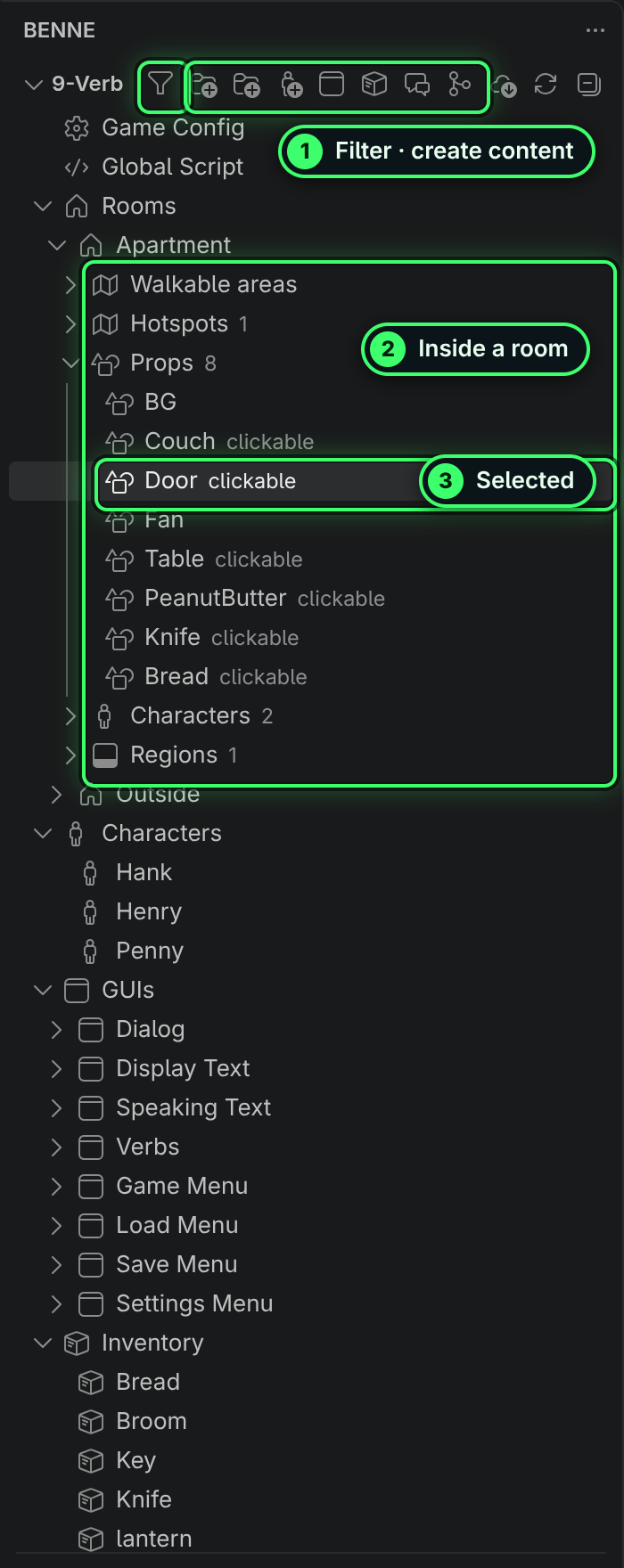

The apartment expanded, with its Door prop selected.

The apartment expanded, with its Door prop selected.

Creating and changing content

Right-click a node for what you can do with it:

Right-click	To
The workspace, or a group (Rooms, Characters, …)	Create a room, character, GUI, inventory item, dialog or puzzle chart. These are also in the BENNE view's title bar.
A room	Play from here, add a prop, hotspot, point, region, walkable area, hole, character or Play From setup, import props from the room's Aseprite tags, open its art folder.
A walkable area	Add another walkable area or a hole.
A character	Import animations from Aseprite tags, open its art folder.
Inventory, or an item	Import inventory items from Aseprite tags.
A GUI	Add a control, open its art folder.
Almost anything	Delete…. The editor tells you where scripts still use it first.
The workspace	Update Engine (see Updating BENNE).

Each create command makes the JSON, the script and the art folder in the right places, and regenerates the script names so the new thing can be used straight away.

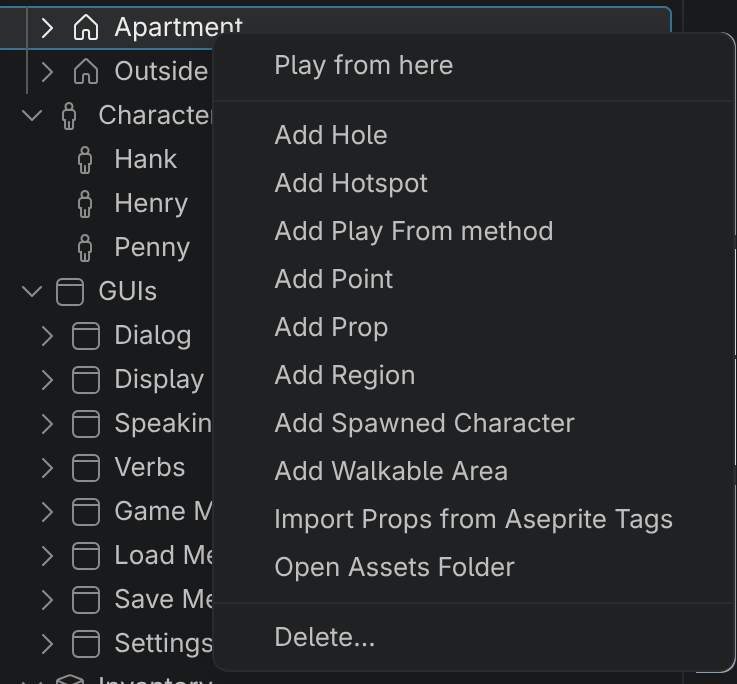

Right-clicking a room.

Right-clicking a room.

Filtering

For larger games, the tree supports a filter: use Filter BENNE tree in its title bar to narrow it to matching entities, and Clear BENNE tree filter to reset.

Inspector

The Inspector edits the properties of whatever is selected in the tree. Instead of hand-editing JSON, you change fields and the editor writes valid changes back to the definition file, when you leave a field or click Save. Open raw JSON shows the file itself.

What the Inspector shows depends on the selection:

• Room: its size and scroll bounds, buttons for its onEnter, onEnterAfterFade, onLoaded and onUpdate hooks, and its Play From setups.
• Prop: tag, animations, z-index, visibility, alpha, collider, walk-to and look-at points, baseline, description, default verb and clickability.
• Hotspot / Region: active state, polygon, walk-to and look-at points and description; regions add scaling, tint and their onEnter and onExit handlers.
• Character: name, walk speed, feet, talk and walk-to points, animations, collider and speech colour.
• Inventory item: name, description, stacking, animations and cursor.
• Dialog: its options, which you can add, edit, reorder and remove.
• GUI and GUI controls: type-specific fields (text, font, colours, state tags, sizes and so on).

Adding handlers from the Inspector

The Inspector writes script handlers as well as JSON. Selecting a prop, hotspot, character or item shows a verb chip for each verb in your game: ⚡ means a handler exists (click to jump to it) and + means it doesn't (click to add one). For example, clicking + use on a prop marks it clickable in the room JSON and adds a door.onUse(() => { … }) stub, with its imports, to the end of the room script, then shows it to you. Rooms, regions, dialog options and GUI controls have the same kind of buttons for their own handlers (onEnter, onChoose, onClick, …).

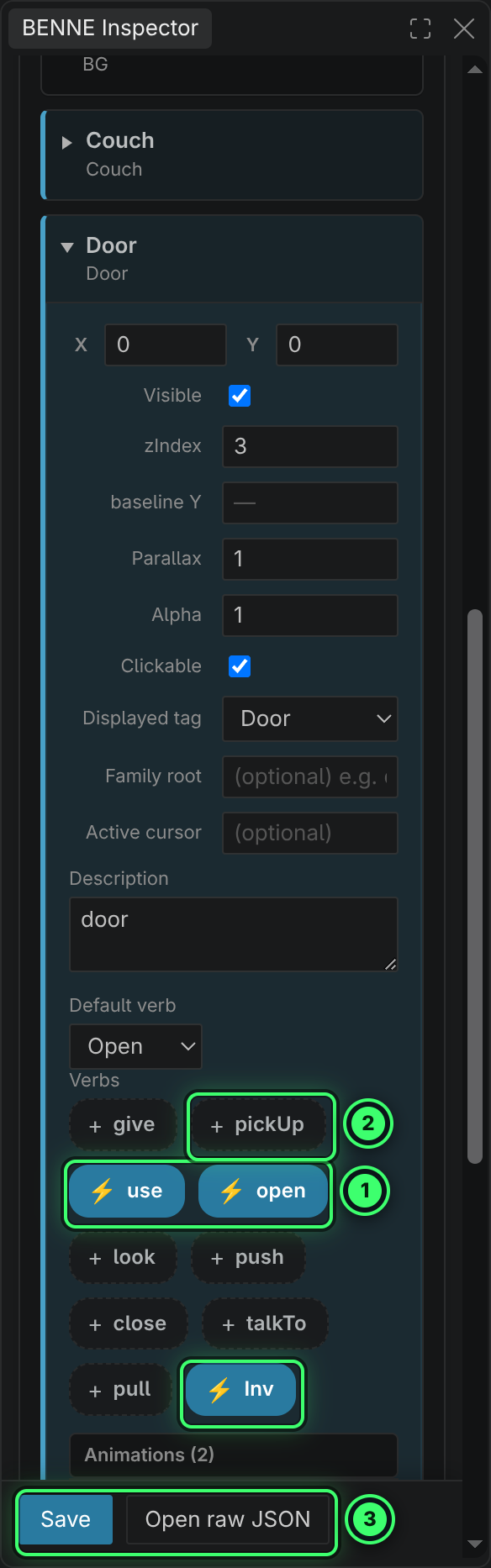

The Inspector for the apartment door.

1. ⚡ The door has a handler for this verb. Click to jump to it.
2. + No handler yet. Click to add one.
3. Write your changes to the JSON, or open the file.

The Inspector for the apartment door.

1. ⚡ The door has a handler for this verb. Click to jump to it.
2. + No handler yet. Click to add one.
3. Write your changes to the JSON, or open the file.

Writing scripts

The editor also helps while you write scripts:

• It completes every generated name: rooms, props, items, sounds, verbs, dialog options and GUI controls.
• Typing a character's name and a colon at the start of a line (Hank:) inserts backticks for the line of dialogue and puts the cursor inside. Turn this off with benneEditor.dialogue.autoInsertBackticks.
• It completes animation tags and facing letters with their quotes, and flags unknown speaker names as you type.
• It completes actions with their parentheses: walkToClicked(), or hank.face() with the cursor inside.
• Go to Definition on a name like couch opens the JSON it came from.

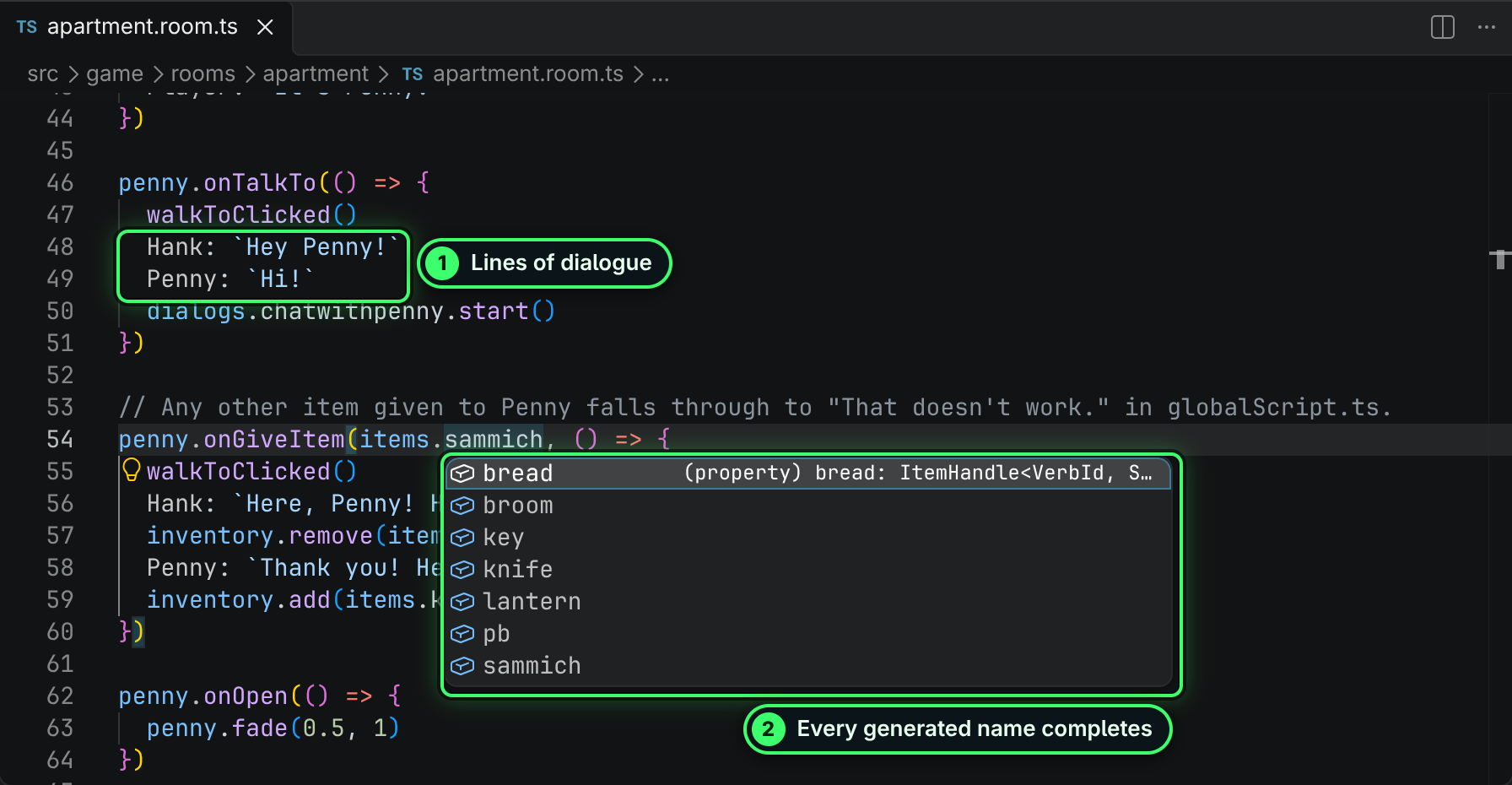

Completing items. lists every inventory item in the game.

Completing items. lists every inventory item in the game.

State

The State view lists the flags and variables declared in src/game/state.ts (see BenneScript → Flags, variables and visits) in two tables, Flags and Vars, each with a name and a default value. Whatever you do in the tables is written to state.ts for you:

• Add a flag or var in the last row of its table: type a name and press Enter. A var also takes a type (text, num, bool, or json for a list or object) and a default. If the game has no state.ts yet, the first one you add creates it.
• Change a default with the checkbox or field next to it.
• Rename by clicking a name. The rename goes through TypeScript, so every flags.oldName in your scripts changes with it. A flag is saved under its name, so renaming one that players already have in their saves also needs flag(…, { saveKey: 'oldName' }) in state.ts to keep those saves.
• Delete with the ✕ that appears when you point at a row. If scripts still use it, the editor tells you where before deleting it.
• ↗ opens state.ts at that entry, and the button in the view's title bar opens the file.

Comments and the order of entries in state.ts are kept. An entry whose value isn't a plain value (a function call, say) is shown greyed out; edit it in state.ts.

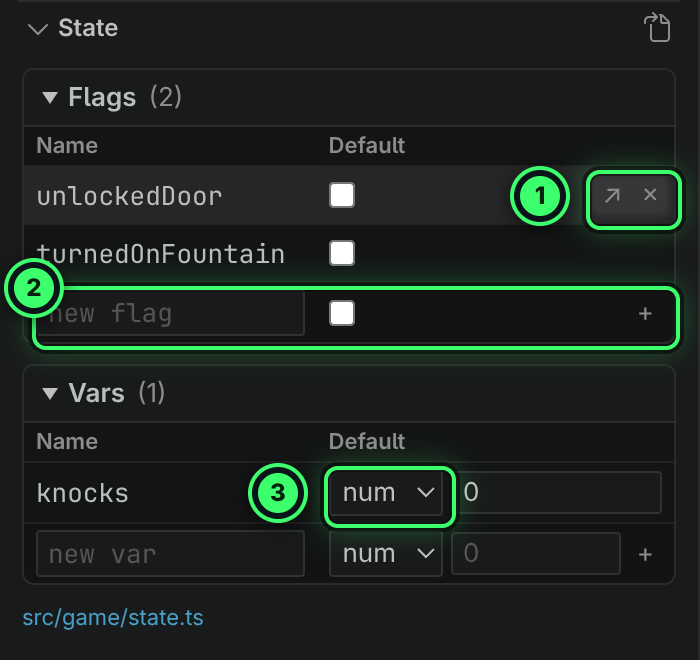

1. Open the entry in state.ts, or delete it.
2. Type a name and press Enter to add a flag.
3. Each var has a type: text, num, bool or json.

1. Open the entry in state.ts, or delete it.
2. Type a name and press Enter to add a flag.
3. Each var has a type: text, num, bool or json.

Previews

Each kind of content has a live preview, rendered by the game engine:

Preview	Opens when you select	What you do there
Room	A room or anything in it	Draw walkable areas, hotspots, regions and colliders; place props, points and characters; drag baselines. See Creating a room.
Character	A character	Play any animation; drag the feet, walk-to point, talk point and collider. See Creating a character.
GUI	A GUI or a control	See the GUI as the game draws it; move controls.
Inventory	An inventory item	See its icon as an inventory panel shows it.
Puzzle chart	A puzzle chart	Edit the chart. See Puzzle dependency charts.

In the room and character previews, the mouse wheel zooms around the pointer, a middle-button drag pans, and F fits everything back in view. Geometry you change in a preview is written to the JSON when you click Save to JSON in the preview's toolbar; until then it is only in the preview. The toolbar's hint line says what you can do with the current selection.

The room preview's top bar also has GUIs, Characters and Outlines checkboxes, which show or hide the HUD, the room's characters, and the walkable area, region and collider outlines. They only change the preview, never the room.

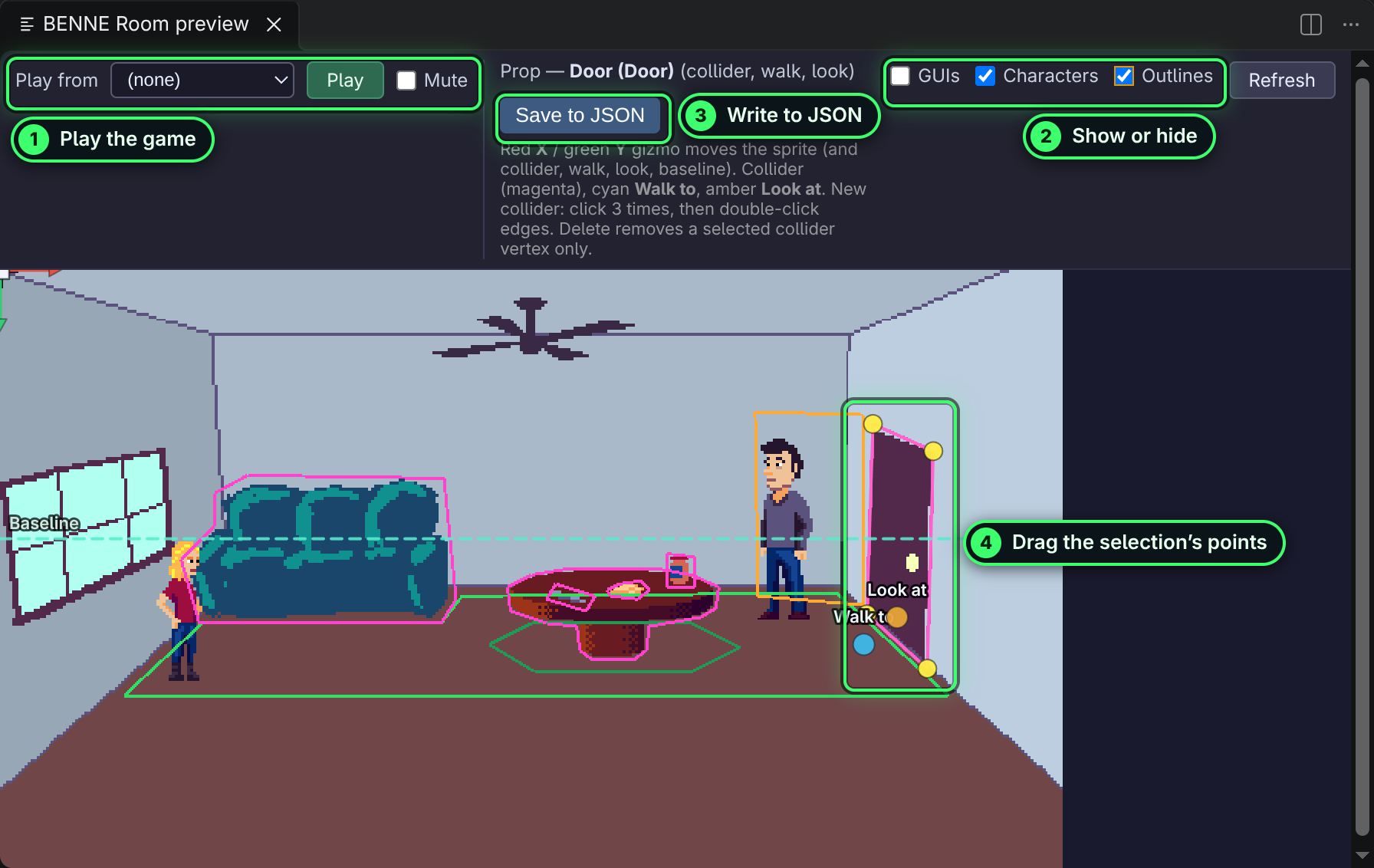

The apartment with Outlines on and the door selected: drag its collider (magenta), walk-to point (cyan) and look-at point (amber), then click Save to JSON.

The apartment with Outlines on and the door selected: drag its collider (magenta), walk-to point (cyan) and look-at point (amber), then click Save to JSON.

BENNE Play

BENNE Play runs your whole game in a VS Code tab, with the full runtime: walking, scripts, dialogs, saving and all. The room preview's top bar always has two buttons for it on the left:

• Play starts the game from its starting room, as a new player would.
• Play from starts in the current room. Its menu lists the room's Play From setups, which put the game into a prepared state first, such as "the player already has the key". You write them in the room script with playFrom('gotKey', () => { … }); the room Inspector's + playFrom button adds one. See Creating a room → Test it.

Tick Mute beside Play to playtest without sound. Right-clicking a room in the tree and choosing Play from here does the same as Play from.

While BENNE Play is open, its bar has an Inventory menu and a Give button that put any item straight into the player's inventory, for testing a puzzle without fetching its pieces. While it is open, BENNE Play rebuilds when you save a script or content file and restarts from where you launched it, so you can change a line and try it again straight away.

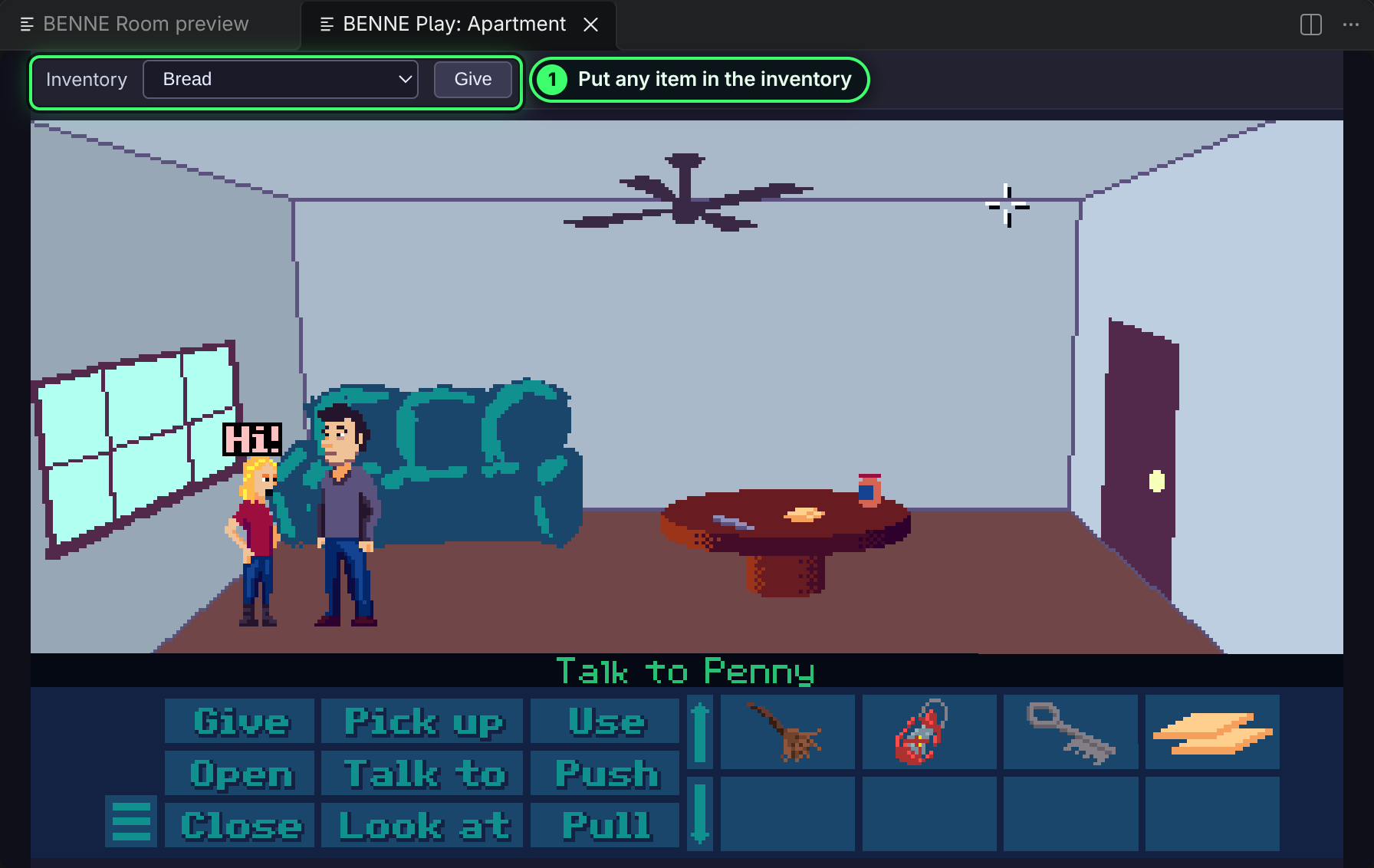

BENNE Play, mid-conversation.

BENNE Play, mid-conversation.

Rebuilding preview bundles

The editor's live previews are powered by prebuilt bundles. In a standalone game project, you can rebuild them from the Actions view or via npm scripts when a preview looks stale after engine or content changes:

• npm run build:room-preview
• npm run build:character-preview
• npm run build:gui-preview
• npm run build:inventory-preview
• npm run build:benne-play (and npm run watch:benne-play for auto-reload)

The matching Rebuild … buttons in the Actions view trigger these for you, and Rebuild Editor Preview Bundles in the BENNE view's title bar rebuilds them all. The room preview reloads automatically on a successful rebuild. With benneEditor.roomPreview.autoRebuildOnGameConfigChange, the room preview also rebuilds itself when game-config.json changes.

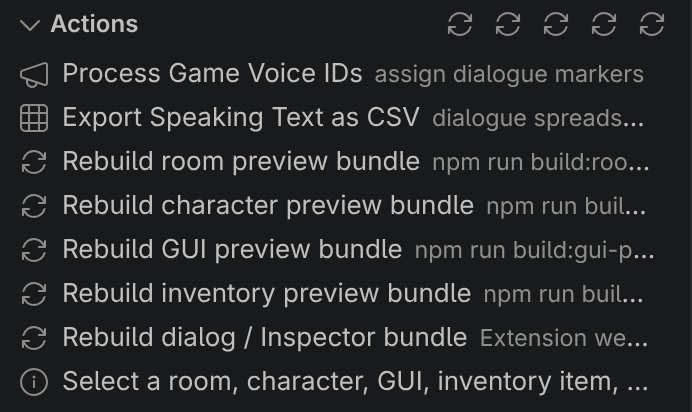

The Actions view when nothing is selected in the tree.

The Actions view when nothing is selected in the tree.

Voice tools

The Actions view also includes voice authoring helpers when nothing is selected in the main tree. Process Game Voice IDs scans src/game/**/*.ts, adds or rewrites |number| voice markers on lines of dialogue, and can show VS Code diffs before applying changes. Export Speaking Text as CSV writes those same lines to a spreadsheet with Character, ID, Script and Line columns. See Sound, voice and video.

Settings

Setting	What it does
benneEditor.layout.revealInspector	Open the Secondary Side Bar on the Inspector when you select something. On by default.
benneEditor.layout.closePanelOnOpen	Close the bottom panel (Terminal, Output, Problems) when an item opens, so the preview and script get the full height.
benneEditor.dialogue.autoInsertBackticks	Insert backticks after Hank: at the start of a line in a script.
benneEditor.roomPreview.autoRebuildOnGameConfigChange	Rebuild the room preview when game-config.json changes.
benneEditor.roomPreview.autoRebuildDebounceMs	How long to wait after the last change before that rebuild starts.

---

With your content created and inspected in the editor, the behavior that brings it to life is written in BenneScript.
