Creating a GUI

A GUI is anything drawn over the room that isn't part of it: the verb bar, the inventory, the save menu, the box narration appears in, the list of dialog choices, a title card. Each GUI is a layer of controls (text, images, buttons, sliders, an inventory panel and more) described in JSON, with a script that says what the controls do.

The templates come with a complete set, so most games start by restyling those rather than building from nothing:

GUI	What it does
verbs	9-verb: the verb buttons, the inventory panel and the sentence line. See Verbs.
inventoryBar, menu-bar, hover-text	2-click: an inventory bar and a menu button that slide down from the top of the screen, and the name of whatever is under the pointer.
game-menu, save-menu, load-menu, settings-menu	The in-game menus.
speaking-text	Shows characters' lines of dialogue.
display-text	Shows narration from display("…").
dialog	Shows the choices in a dialog.

Three GUIs belong to the engine

speaking-text, display-text and dialog are shown and hidden by the engine for speech, narration and conversations. Restyle them as much as you like (fonts, colours, art, positions), but keep their ids and the ids of their controls, which the engine looks for.

1. Create the GUI

In the BENNE tree, right-click GUIs and choose Create GUI (also in the BENNE view's title bar and the Command Palette). Give it a display name and an id, such as inventory-screen. The editor creates:

src/game/guis/inventory-screen/inventory-screen.gui.json   ← its controls
src/game/guis/inventory-screen/inventory-screen.gui.ts     ← what they do
src/game/assets/images/guis/inventory-screen/              ← where its art goes

In scripts the GUI is guis.inventoryScreen. A new GUI is visible from the start; untick visible in the Inspector for menus and other GUIs that should only appear when a script shows them.

2. Draw its art

A GUI's art is one Aseprite file, assets/images/guis/<id>/<id>.aseprite, exported as <id>.png and <id>.json (see Exporting from Aseprite). Tag each image the GUI uses: a panel background, each button's normal, hover, pressed and disabled looks, a slider's track and handle.

For panels that stretch to any size, draw the panel once and mark its nine parts (four corners, four edges and the middle) with slices in Aseprite, then tick Slices when exporting. A 9-slice image control draws those parts at whatever size it is given. The template menus are drawn this way.

GUI art is optional. Text, and buttons with a plain backgroundColor, need no sheet at all.

3. Add controls

Right-click the GUI in the tree and choose Add GUI Control, or click Add Control in the Inspector. Pick a type and give the control an id; the id is the control's name in the script, so give anything a script touches a clear one, like saveBtn or musicVolume.

Controls

Control	What it is	Key settings
Text	A line or block of bitmap text.	text, font, fontSize, color, align, wordWrapWidth, textOutline
Image	A tag from the GUI's sheet.	tag, backgroundAnchor
9-slice image	A panel that stretches to any size.	tag, width, height, sliceNames
Button	Something to click, with a label and per-state looks.	width, height, text, font, backgroundTag, states (hover, pressed, disabled tags), or backgroundColor and backgroundColorStates; textColorStates
Checkbox	On or off.	tag, states, checked
Slider	A value in a range, such as a volume.	trackTag, handleTag, min, max, step, defaultValue
Text Input	Somewhere to type, such as a save name.	width, height, font settings
List Box	A scrolling list to pick from, such as save slots.	width, height, row and font settings
Inventory Panel	A grid that shows the player's items and fills itself as they change.	rows, cols, slotWidth, slotHeight, spacingX, spacingY, backButton and forwardButton (ids of buttons that scroll it), slotBackgroundTag, highlightTag
Trigger	An invisible rectangle that reacts to the pointer entering and leaving.	width, height
Grid	An invisible layout of rows and columns that other controls sit in.	rows, columns, rowHeights, colWidths

Every control has x, y, visible and zIndex (the order within the GUI, higher in front).

Arranging controls

Select a control in the tree to edit it in the Inspector and drag it in the GUI preview, which renders the GUI exactly as the game will. Positions are in game pixels, from the top-left of the screen.

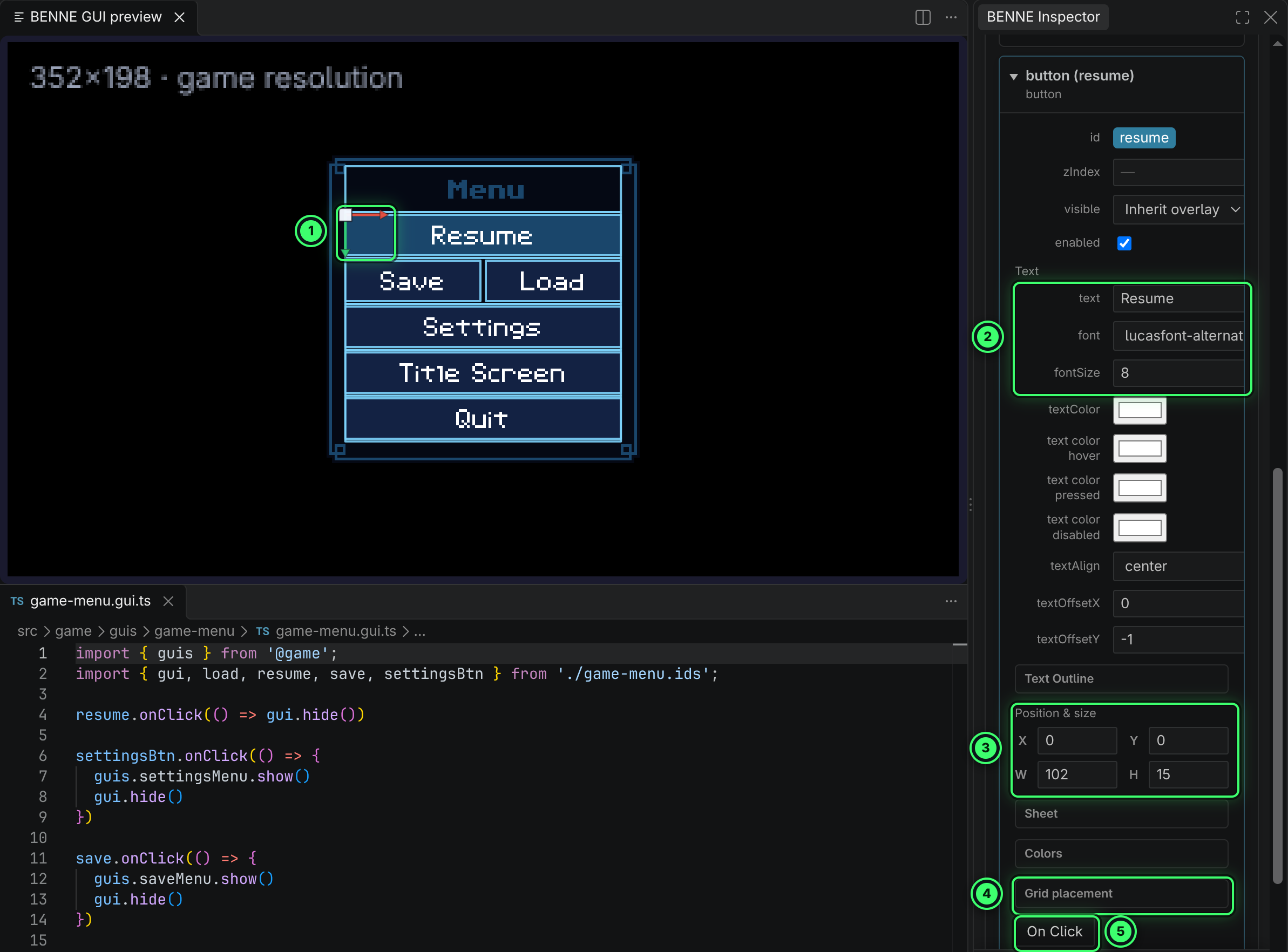

The game menu’s Resume button.

1. Drag the gizmo to move the control.
2. Its label and bitmap font.
3. Its position and size, in game pixels.
4. Its cell, when it sits in a grid.
5. Add its onClick handler, or jump to it.

The game menu’s Resume button.

1. Drag the gizmo to move the control.
2. Its label and bitmap font.
3. Its position and size, in game pixels.
4. Its cell, when it sits in a grid.
5. Add its onClick handler, or jump to it.

For tidy menus, add a Grid and place controls in its cells: give a control a gridPlacement naming the grid, a row, a column and an alignment (such as center or center-left). The template game menu is a one-column grid with a title and five buttons.

GUI settings

Select the GUI itself to set:

Setting	What it does
visible	Whether the GUI is showing when a room loads.
modal	While the GUI is showing, clicks can't reach the room or any GUI behind it. Use it for menus.
zIndex	Order among GUIs: higher is in front. The template menus are 100 and above.
x, y	Where the whole GUI starts. A bar can start off screen ("y": -34) and slide in from a script.
fixedControls	Ids of controls that stay put when a script moves the whole GUI.

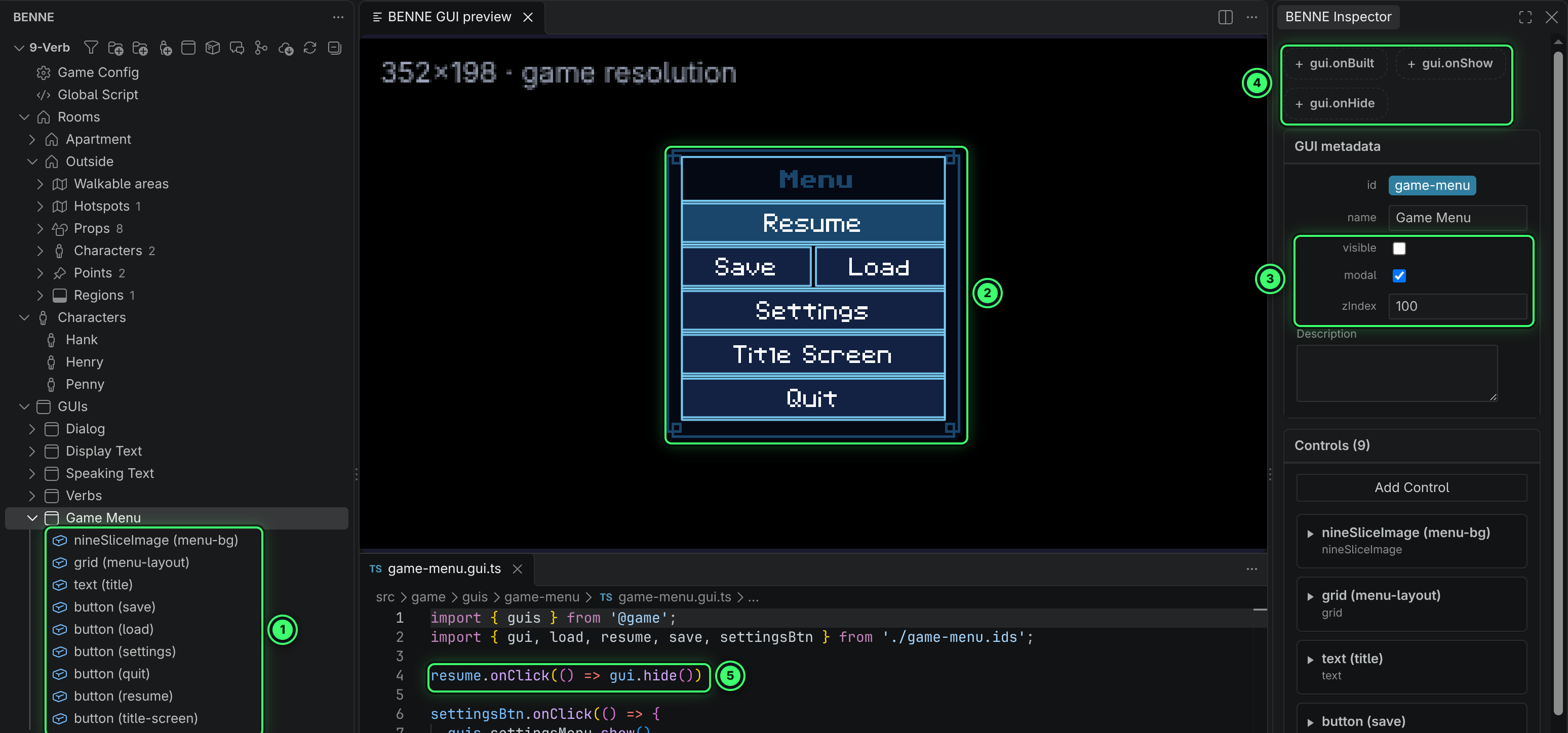

The template’s game menu.

1. Its controls, in the tree.
2. The GUI preview, which draws it as the game does.
3. A menu: hidden at first, modal, and in front of the HUD.
4. Its own handlers.
5. A control’s handler in the GUI’s script.

The template’s game menu.

1. Its controls, in the tree.
2. The GUI preview, which draws it as the game does.
3. A menu: hidden at first, modal, and in front of the HUD.
4. Its own handlers.
5. A control’s handler in the GUI’s script.

Text and fonts

All text in BENNE is drawn with bitmap fonts, so it stays pixel-sharp at any scale. The templates include several retro fonts, among them a LucasArts SCUMM-style font (lucasarts-scumm-solid), lucasfont-alternate, a Sierra menu font (sierra-sci-menu-font) and PressStart2P-Regular.

Fonts live in src/game/assets/fonts/, listed in fonts.json. Each entry's key is the name a control's font uses:

{
  "lucasarts-scumm-solid": {
    "textureFile": "lucasarts-scumm-solid_0.png",
    "dataFile": "lucasarts-scumm-solid.xml"
  }
}

To add a font, convert it to a bitmap font (a PNG of its letters and an AngelCode BMFont .xml file) and add an entry. The templates' fonts folder includes the BMFont settings they were made with, BENNE bitmap font export.bmfc.

A textOutline draws an outline behind text, which keeps it readable over busy room art. The 2-click hover text uses one.

4. Script the GUI

A GUI's script uses its controls by their plain names:

// guis/game-menu/game-menu.gui.ts
import { guis } from '@game'
import { gui, load, resume, save, settingsBtn } from './game-menu.ids'

resume.onClick(() => gui.hide())

settingsBtn.onClick(() => {
  guis.settingsMenu.show()
  gui.hide()
})

save.onClick(() => {
  guis.saveMenu.show()
  gui.hide()
})

load.onClick(() => {
  guis.loadMenu.show()
  gui.hide()
})

(The settings button is settingsBtn because settings is already a BenneScript name; its JSON has "scriptName": "settingsBtn".)

Other scripts reach a GUI through guis: the verb bar's menu button runs guis.gameMenu.show().

Sliders, checkboxes and text inputs report changes as they happen. The settings menu connects its controls to the player's settings:

// guis/settings-menu/settings-menu.gui.ts
gui.onBuilt(() => {
  sfxVolume.value = settings.sfxVolume * 100
  musicVolume.value = settings.musicVolume * 100
})

sfxVolume.onChange((v: number) => {
  settings.sfxVolume = v / 100
})

musicVolume.onChange((v: number) => {
  settings.musicVolume = v / 100
})

Control	Read and set	Handlers
Any	visible, alpha, x, y, fadeTo(…), tweenTo(…)	onMouseEnter, onMouseLeave
Text	text
Button	enabled, visualState	onClick
Slider	value	onChange((value) => …)
Checkbox	checked, enabled	onChange((checked) => …)
Text input	text, enabled, focused	onChange((text) => …), onSubmit((text) => …)
List box	selectedIndex, setRowText(i, text), rowCount	onSelect((i) => …), onActivate((i) => …)

The GUI itself has show(), hide(), visible, fadeIn(), fadeOut(), and the handlers onBuilt (each time a room builds it), onShow, onHide and onAnyClick. The Inspector adds handlers for you: select a button and click On Click, or a slider, checkbox or text input and click On Change, to add its handler (or jump to it), and the GUI's own chips do the same for onBuilt, onShow and onHide.

GUI handlers keep working during cutscenes and while the player character is busy, so a menu can always be opened.

Patterns

A menu over the game

Set visible off, modal on and a high zIndex. Show it from a button (menuBtn.onClick(() => guis.gameMenu.show())) and hide it from its own Resume button. Because it is modal, clicks can't reach the room while it is open.

To keep a button for desktop builds only, set its visibility as the menu opens:

gui.onShow(() => {
  quit.visible = game.isDesktop
})

quit.onClick(() => game.quit())

A bar that slides in

The 2-click template's menu bar sits mostly off screen ("y": -17) and slides down when the pointer reaches the top of the screen. Two Trigger controls do the work: hoverZone, a thin strip along the top edge, and hideZone, which covers the bar when it is open.

// guis/menu-bar/menu-bar.gui.ts
hoverZone.onMouseEnter(() => {
  gui.root.tweenTo({ y: 0 }, 0.3, 'Sine.easeOut')
})

hideZone.onMouseLeave(() => {
  gui.root.tweenTo({ y: -17 }, 0.25, 'Sine.easeIn')
})

menuBtn.onClick(() => guis.gameMenu.show())

gui.root is the whole GUI as one control, so moving it moves everything except fixedControls.

Showing what's under the pointer

The 2-click template's hover text follows pointer.hover:

// guis/hover-text/hover-text.gui.ts
function refresh() {
  const hover = pointer.hover
  const inRoom = hover?.kind === 'prop' || hover?.kind === 'hotspot' || hover?.kind === 'character'
  const label = inRoom ? (hover.description?.trim() || hover.id?.trim() || '') : ''
  if (label) text.text = label
  gui.root.visible = label !== ''
}

gui.onBuilt(refresh)
pointer.onContextChange(refresh)

A title card

A game can open with a few paragraphs of text that fade in and out over music. Make a room with nothing else in it, and a hidden GUI (title-card) with one text control, and let the room script drive it:

const paragraphs = [
  `It was a dark and stormy night.`,
  `Hank had run out of coffee.`,
]

room.onEnterAfterFade(() => {
  music.intro.play()
  const text = guis.titleCard.controls.text
  text.alpha = 0
  guis.titleCard.show()

  cutscene(() => {
    for (const paragraph of paragraphs) {
      text.text = paragraph
      text.fadeTo(1, 1.2, { clickToSkip: true })
      waitForClick({ timeout: 10 })
      text.fadeTo(0, 1.2, { clickToSkip: true })
    }
  })
  rooms.apartment.goTo()
})

A room can hide GUIs it doesn't want, such as the verb bar on a title screen, in its onEnter: guis.verbs.hide().

Checklist

• The GUI's art, if any, is exported to assets/images/guis/<id>/, with slices for stretchable panels.
• Every control a script uses has a clear id.
• Menus start hidden, are modal, and sit above the HUD with a higher zIndex.
• Every menu has a way to close it.
• Text uses fonts listed in fonts.json, with an outline where it sits over busy art.
