Creating a Room

A room is one scene of your game: the apartment, the street outside, the park down the road. Most of what the player does happens in a room, so a room brings a lot together: its art, where characters can walk, the things the player can click, the characters who are there, and a script that says what happens.

This page builds a room from nothing, in the order you would usually work. The examples come from the 9-verb template, whose apartment and street you can open alongside.

Part	What it is	In scripts
Props	Pieces of the room's art: the background, furniture, a door that opens, a knife you can pick up	door, knife
Walkable areas	Polygons of floor that characters can walk on, with holes for obstacles	walkables.walk1
Hotspots	Clickable shapes with no art of their own: a window, a sign, an exit	windowHotspot
Points	Named spots: where the player appears, where someone walks to	points.enterFromDoor
Regions	Areas of floor that react to characters: triggers, perspective scaling, shadows	regions.darkness
Characters	Characters placed in the room, including the player	hank, penny

1. Create the room

In the BENNE tree, right-click Rooms and choose Create New Room. The same command is in the BENNE view's title bar and, as BENNE: Create New Room, in the Command Palette. You are asked for two things:

• A display name, such as Kitchen. It is shown in the BENNE tree.
• An id, such as kitchen. It names the folder and files, and in scripts the room becomes rooms.kitchen.

The editor creates:

src/game/rooms/kitchen/kitchen.room.json   ← what's in the room
src/game/rooms/kitchen/kitchen.room.ts     ← what happens in it
src/game/assets/images/rooms/kitchen/      ← where its art goes

and adds the room to src/game/rooms/rooms.manifest.json. The new room is the size of your game's resolution and empty. Selecting it in the tree opens its live preview with the room script underneath, and its settings in the Inspector.

The game starts in the room named by startingRoomId in game-config.json.

2. Draw the room

All of a room's art lives in one Aseprite file: src/game/assets/images/rooms/kitchen/kitchen.aseprite, exported next to it as kitchen.png and kitchen.json.

A room's sheet is organised like this:

• The canvas is the size of the room. For a single-screen room in a 352×198 game, that's 352×198. A scrolling room is wider or taller.
• Each tag is a prop. A prop is any piece of the room that BENNE draws, shows, hides or animates on its own. Draw each prop on its own frame, in place on the full-size canvas, and tag that frame with the prop's name.
• An animated prop is a tag that spans several frames. The apartment's ceiling fan is the Fan tag over five frames.
• Other looks of a prop are more tags named after it. The apartment door is Door (closed) and Door-open.
• Frames without a tag aren't used by the game.

The 9-verb apartment's sheet has the tags BG, Couch, Door, Door-open, Pillar, Fan, Table, Bread, PeanutButter and Knife. Layers are yours to organise however you like; the export flattens each frame.

Exporting from Aseprite

Rooms, characters, inventory items, GUIs and the cursor all use the same export:

1. In Aseprite, choose File → Export Sprite Sheet.
2. On the Output tab, tick Output File and JSON Data, and save them next to the .aseprite file with the same name (kitchen.png, kitchen.json).
3. Choose Hash for the JSON format, and tick Tags under Meta. Tick Slices too for GUI sheets that use nine-slice images.

Re-export whenever you change the art: the game and the previews use the exported files, not the .aseprite file.

3. Add the props

Right-click the room in the BENNE tree and choose Import Props from Aseprite Tags. BENNE reads the tags on the room's sheet and asks how to import them:

• Grouped by base tag (recommended) makes one prop per thing, with all its looks: Door and Door-open become a single prop Door that can switch between the two.
• Legacy: one prop per tag makes a separate prop for every tag you pick.

Then pick the tags, and say whether the new props should be clickable. You can import again later, after adding tags to the sheet; tags that are already props are marked.

Right-clicking a room. The steps below all start here.

Right-clicking a room. The steps below all start here.

Add Prop adds one prop at a time instead: you give it the Aseprite tag, an id and whether it is clickable.

Select a prop in the tree to edit it in the Inspector and the preview. Its settings:

Setting	What it does
tag	The animation the prop starts with.
animations	Its other tags, each with optional loop and frameDuration (milliseconds per frame). The fan's Fan tag has "loop": true.
zIndex	Drawing order among props. Higher numbers are drawn in front.
baseline	A horizontal line for walking around the prop. Characters whose feet are below the line are drawn in front of the prop, and behind it above the line.
visible, alpha	Whether it starts visible, and its opacity (0 to 1).
clickable	Whether the player can point at it and click it.
collider	The clickable shape. A clickable prop needs one.
walkToPoint, lookAtPoint	Where the player stands to use the prop, and the point they turn to face. walkToClicked() uses both.
description	The prop's name on screen: "Look at couch".
defaultVerb	The verb a "default verb" click does on it. See Verbs.
activeCursorOverride	A cursor animation to show while the pointer is over it.
parallaxDepth	For scrolling rooms. Below 1, the prop scrolls slower than the camera and looks far away; above 1, faster, like foreground. The street's sky is 0.75 and its trees 0.9.
x, y	Moves the art away from where it was drawn on the canvas.

Shaping a clickable prop

When you select a clickable prop, the preview shows:

• a magenta polygon: the collider, the shape the player clicks;
• a cyan handle: Walk to, where the player stands;
• an amber handle: Look at, what the player faces;
• a red and green gizmo that moves the whole prop.

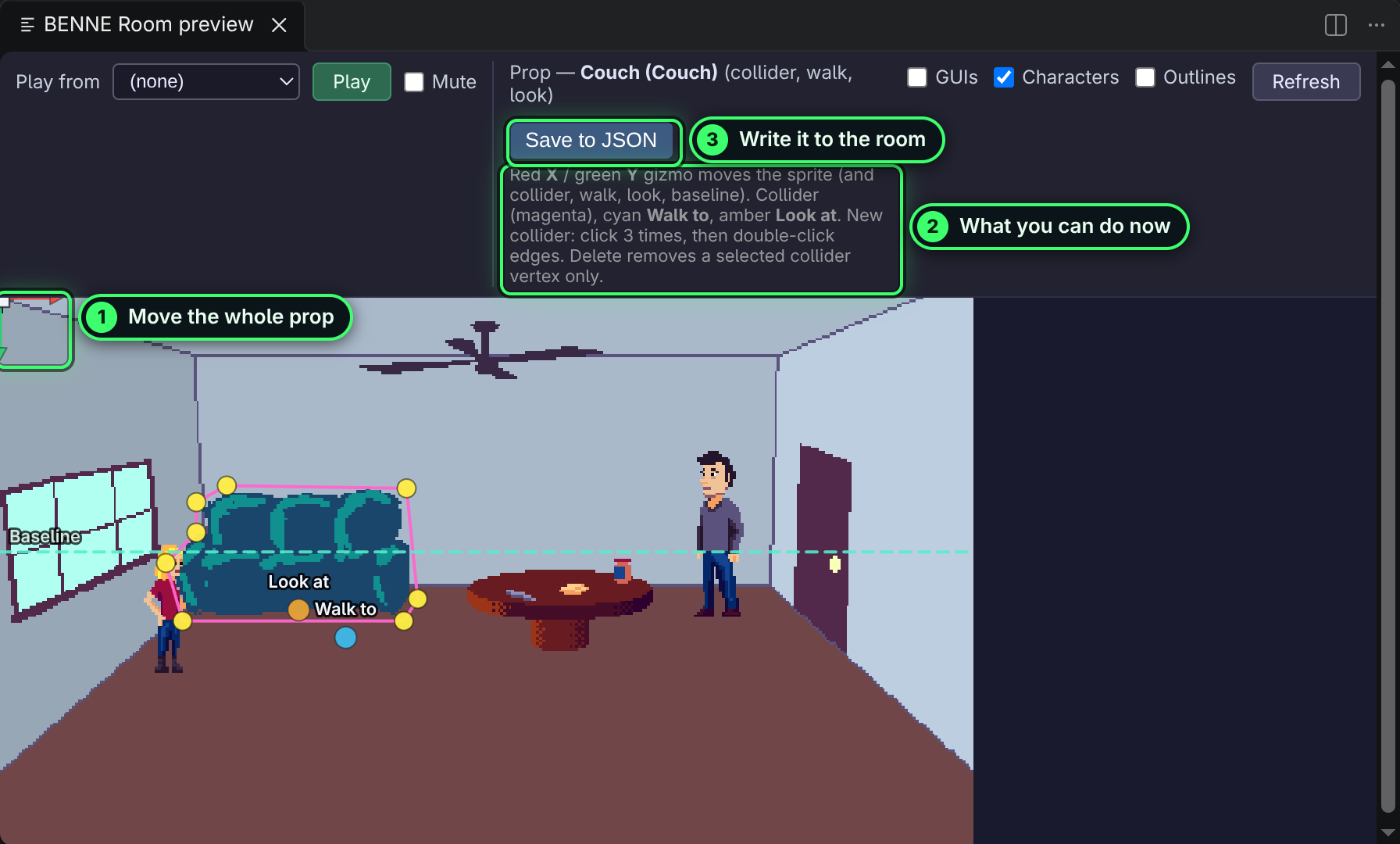

The couch selected. Its magenta collider, cyan walk-to point and amber look-at point are ready to drag.

1. The gizmo moves the whole prop.
2. The hint line says what you can do with the selection.
3. Nothing is written to the room until you click Save to JSON.

The couch selected. Its magenta collider, cyan walk-to point and amber look-at point are ready to drag.

1. The gizmo moves the whole prop.
2. The hint line says what you can do with the selection.
3. Nothing is written to the room until you click Save to JSON.

To draw a new collider, click three times to place the first points. Double-click an edge to add a point, drag points to reshape it, and press Delete to remove the selected point. When you're happy, click Save to JSON in the preview's toolbar. Nothing is written to the room until you save.

A prop that isn't clickable shows only its baseline, a cyan line you drag up or down.

Depth: zIndex and baseline

Props are stacked by zIndex. Characters walk among them: a character is drawn in front of a prop when their feet are lower on the screen than the prop's baseline. Give a table a baseline along its front edge, and the player walks behind it at the back and in front of it at the front. A prop with no baseline is ordered by zIndex alone, so a background (BG, zIndex 0) stays behind everything.

4. Mark where characters can walk

Right-click the room and choose Add Walkable Area. Select it under Walkable areas in the tree, click three times in the preview to place the first points, then double-click edges to add more and drag points to fit the floor. Save to JSON when you're done.

Trace the floor where characters' feet can go, not the whole visible floor: feet near the back wall should stop short of it. Characters can't walk outside a walkable area. A click outside one walks the player as close as they can get.

Holes cut obstacles out of a walkable area. Right-click a walkable area and choose Add Hole, then shape it the same way. The street outside the apartment has two holes, around the fountain and the rock, and the apartment one around its table.

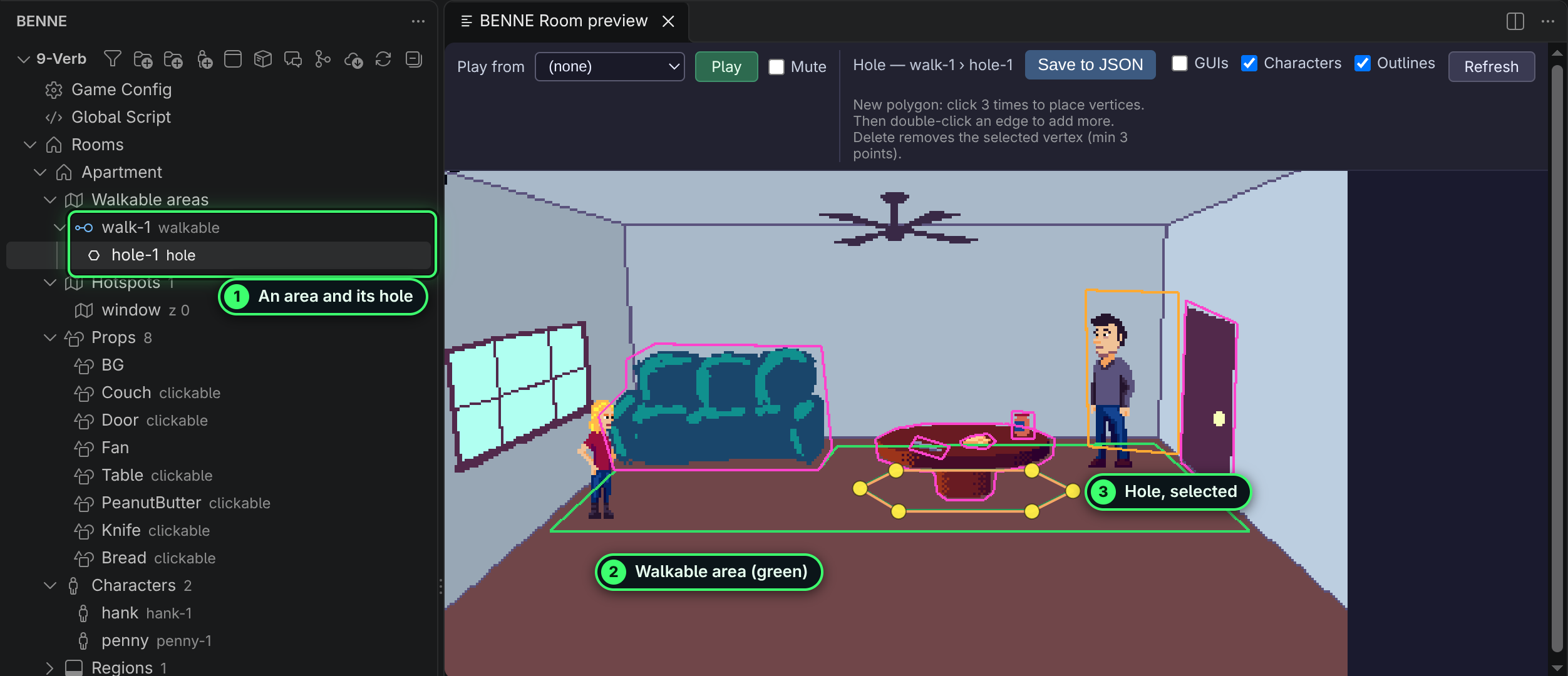

The apartment’s floor (green, with Outlines on) and the hole around its table, selected for editing.

The apartment’s floor (green, with Outlines on) and the hole around its table, selected for editing.

A room can have several walkable areas, and scripts can switch them on and off: walkables.walk1.active = false.

5. Add hotspots

A hotspot is a clickable shape with no art of its own, for things painted into the background: a window, a sign, a crack in the wall, the edge of the screen that leads somewhere else. Right-click the room, choose Add Hotspot and give it an id. In the preview, a hotspot is an orange polygon with the same Walk to and Look at handles as a prop, edited the same way.

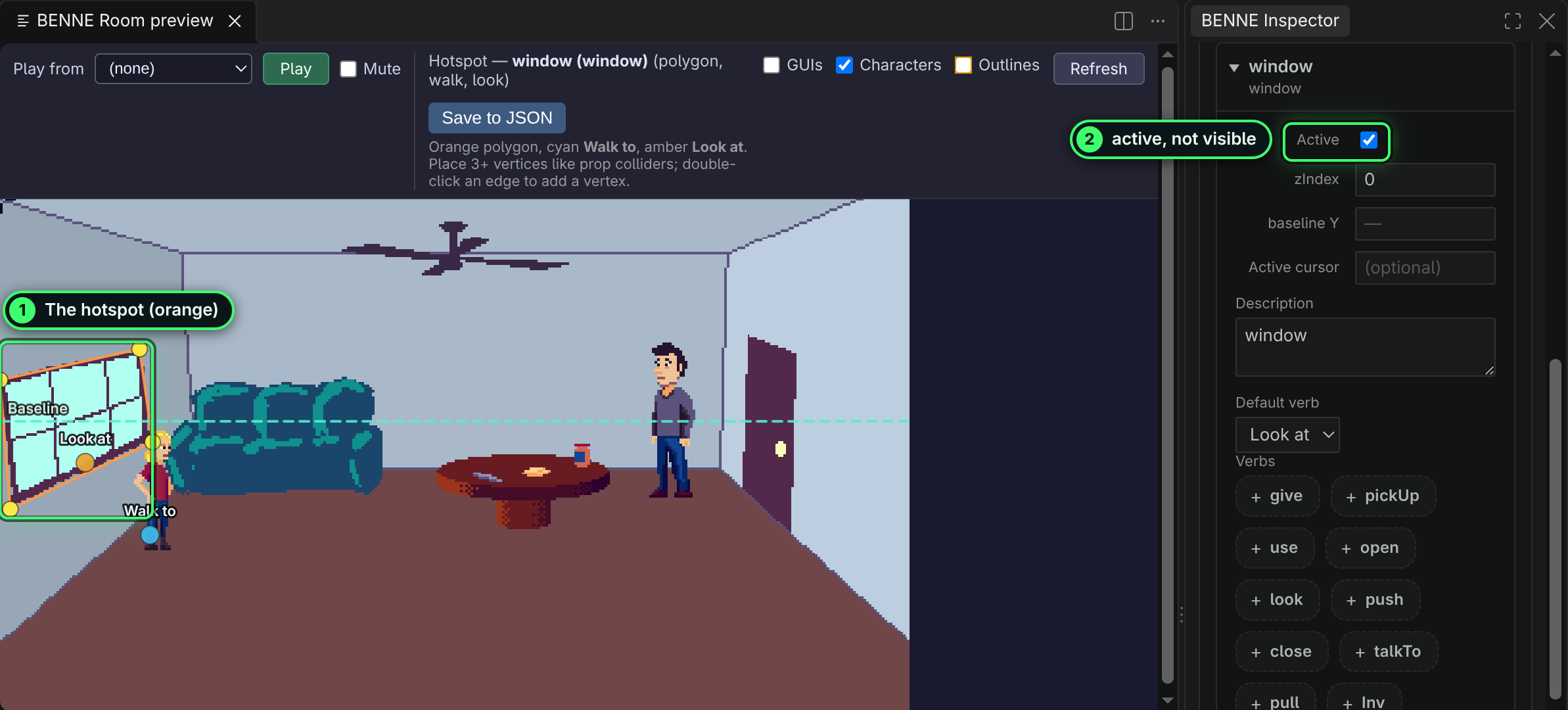

The apartment’s window hotspot, and its settings in the Inspector.

The apartment’s window hotspot, and its settings in the Inspector.

Hotspots have a description, defaultVerb, zIndex, baseline and activeCursorOverride like props, and an active switch instead of visible: windowHotspot.active = false stops the window being clickable.

Prop or hotspot? Use a prop when the thing changes on screen: it disappears when picked up, opens, or animates. Use a hotspot when it is part of the painted background and stays the same.

When a name is taken

The apartment's window hotspot has the id window, but window is also a browser global, so its JSON has "scriptName": "windowHotspot" and scripts call it windowHotspot. Anything in a room can have a scriptName when its generated name clashes or reads badly.

6. Add points

A point is a named spot in the room for scripts: where the player appears when they come in through each door, or where a character walks to. Right-click the room, choose Add Point, drag it into place with the gizmo and Save to JSON.

The street outside the apartment has enter-from-door and henry-fountain. In its script they are points.enterFromDoor and points.henryFountain:

room.onEnter(() => {
  player.moveTo(points.enterFromDoor)
  player.face('R')
})

7. Add regions

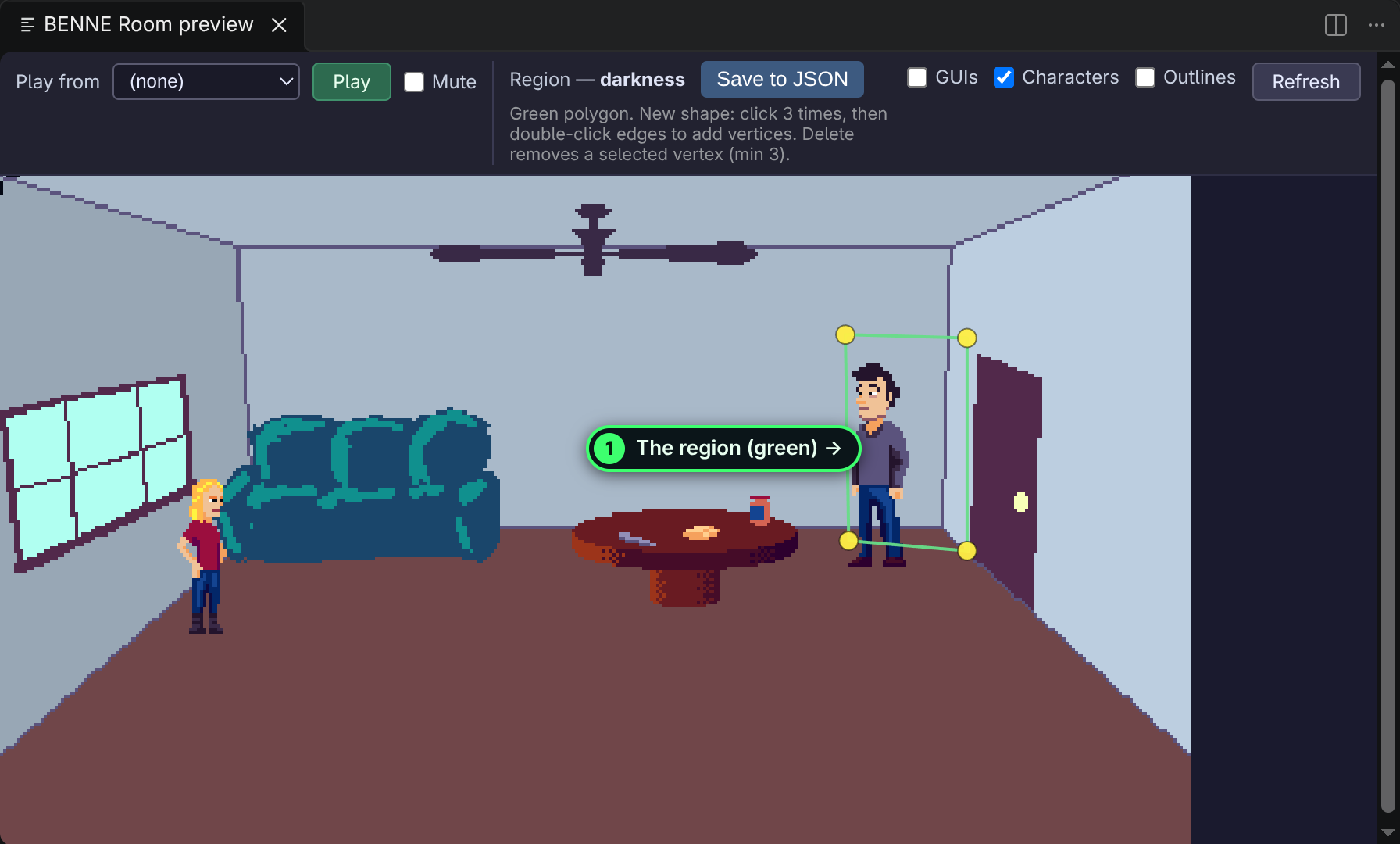

The apartment’s darkness region, which darkens anyone standing by the door.

The apartment’s darkness region, which darkens anyone standing by the door.

A region is a polygon on the floor that does something when characters stand in it. Right-click the room, choose Add Region, and shape it in the preview (a green polygon). One region can do any of these:

Run script when someone walks in or out. The Inspector's onEnter and onExit chips add the handlers to the room script:

regions.darkness.onEnter(() => {
  Hank: `It's dark over here.`
})

Regions fire for every character, so check who it was when it matters: regions.distance.onEnter((who) => { if (who.isPlayer) music.halloweenSpooky.play() }).

Scale characters for perspective, so they shrink as they walk away from the camera. Turn on scaleEnabled and set scaleTop and scaleBottom: the size at the region's top and bottom edges, where 1 is full size. The street's distance region goes from 0 at the top to 1 at the bottom, and perspective.minWalkScale in game-config.json keeps characters from shrinking to nothing. scaleWalkSpeed slows characters down as they shrink.

Tint characters, for shadows or coloured light. Turn on tintEnabled and set a tint colour and tintAlpha (strength, 0 to 1). The apartment's darkness region darkens anyone in it with black at 0.75.

Block walking with "walkable": false, which treats the region as a hole in the floor.

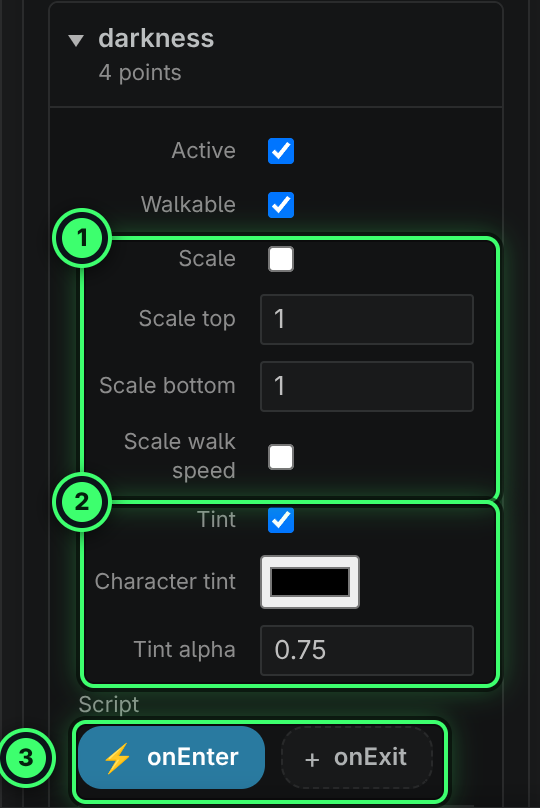

1. Perspective scaling.
2. Tint: black at 0.75 for darkness.
3. ⚡ jumps to a handler, + adds one.

1. Perspective scaling.
2. Tint: black at 0.75 for darkness.
3. ⚡ jumps to a handler, + adds one.

A region can be switched off from a script: regions.darkness.active = false.

8. Put characters in the room

Right-click the room, choose Add Spawned Character and pick a character (see Creating a character). Drag the gizmo at their feet to place them and Save to JSON. In the Inspector you can set which way they face at the start (initialFacing), their starting animation, whether they are visible, and their zIndex.

Place the player in every room they walk around in

The player character only appears in a room that places them. Add your player to every room where they walk around; a title screen or credits room doesn't need them. Scripts then move the player to the right spot as they come in, with player.moveTo(points.x) in room.onEnter.

A character placed in a room is a plain name in its script (penny). You can hide one until they're needed ("visible": false in the room, then penny.show()).

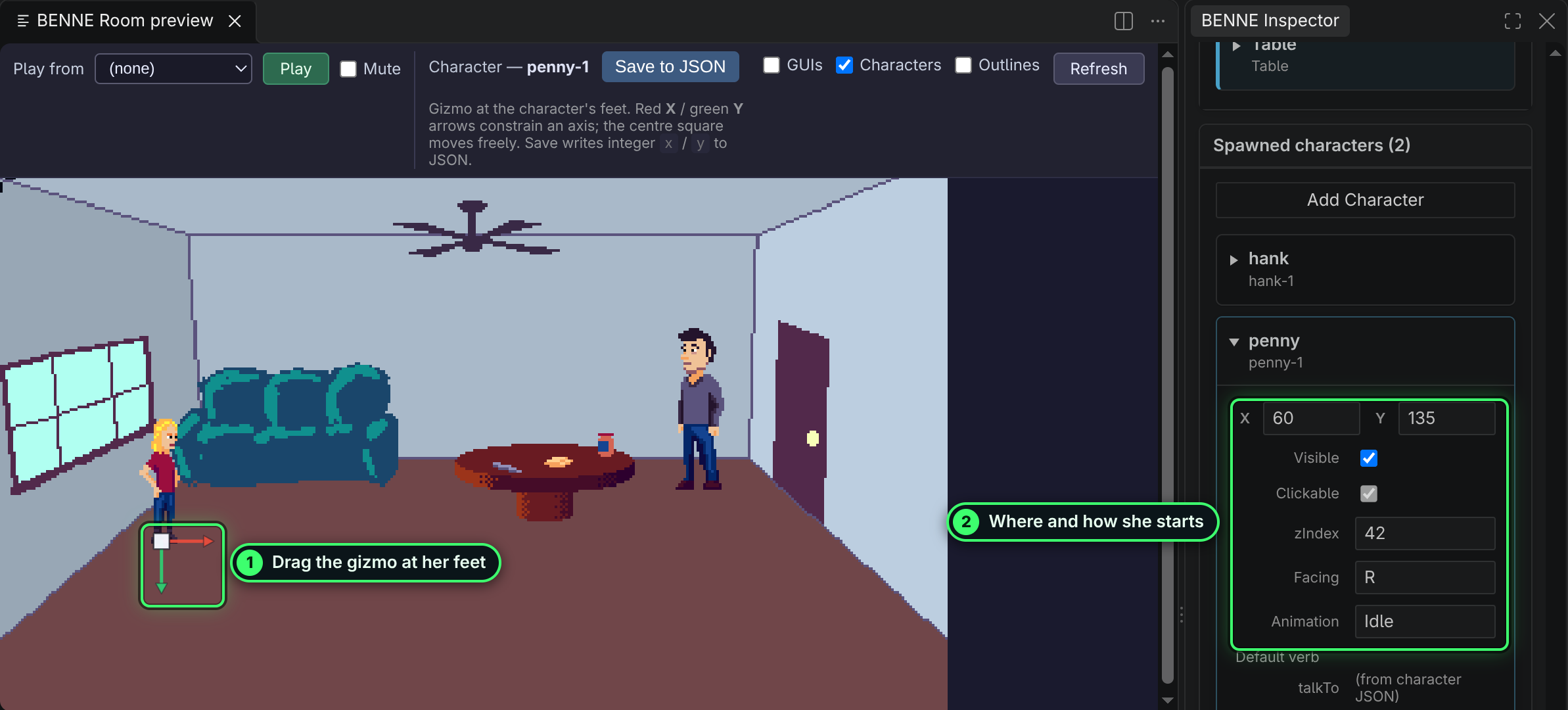

Penny as placed in the apartment. Each room she is in has its own copy of these settings.

Penny as placed in the apartment. Each room she is in has its own copy of these settings.

9. Size and scrolling

A room larger than the game's resolution scrolls, and the camera follows the player. The street outside is 600 pixels wide in a 352-pixel-wide game.

Select the room and set its Room size in the Inspector, or click Edit in Preview and drag the cyan handles. Scroll bounds limit where the camera can go inside the room (orange handles), which is useful when the edges of the art are only there to look good. Characters can still walk beyond the scroll bounds. Press F in the preview to fit the room back into view.

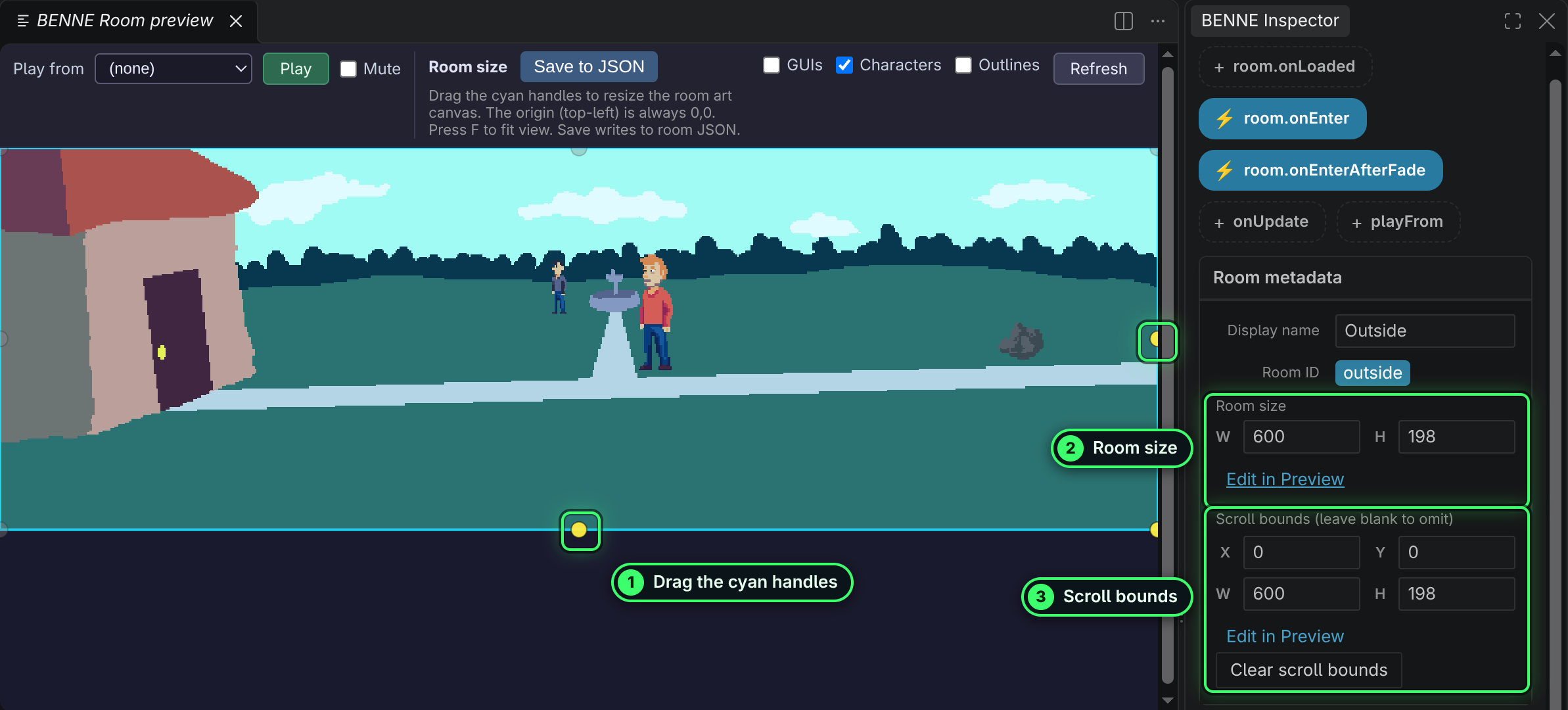

Resizing the street outside, which is 600 pixels wide in a 352-pixel-wide game.

Resizing the street outside, which is 600 pixels wide in a 352-pixel-wide game.

For a sense of depth in a scrolling room, give distant props a parallaxDepth below 1 (see props).

10. Script the room

The room's script, kitchen.room.ts, says what happens in it: what each verb does on each thing, what happens as the player comes in, and when they leave. You don't register anything; you write handlers at the top level of the file, using the room's things by name.

The two 9-verb rooms are connected by a door. In the apartment:

// apartment.room.ts
door.on(['open', 'use'], () => {
  walkToClicked()
  if (flags.unlockedDoor) {
    door.animation = 'Door-open'
    sfx.doorOpen.playAndWait()
    rooms.outside.goTo()
  } else {
    Hank: `The door is locked.`
  }
})

door.onUseItem(items.key, () => {
  walkToClicked()
  flags.unlockedDoor = true
  inventory.remove(items.key)
  Player: `The door is unlocked.`
})

And on the street, where the player arrives:

// outside.room.ts
room.onEnter(() => {               // before the fade-in: set the scene up
  player.moveTo(points.enterFromDoor)
  player.face('R')
})

room.onEnterAfterFade(() => {      // after the fade-in: things the player sees happen
  sfx.doorClose.play()
  if (room.isFirstVisit) {
    Henry: `Hey, Hank!`
    Henry: `Come here!`
    player.walkTo(henry)
  }
})

door.on(['open', 'use'], () => {
  walkToClicked()
  rooms.apartment.goTo()
})

Selecting a prop, hotspot or character shows its verb chips in the Inspector: click a + chip to add a handler for that verb to the room script. BenneScript covers the room hooks in full, and Verbs covers handlers.

11. Test it

The preview's top bar has Play and Play from on the left:

• Play starts the whole game in BENNE Play, from the starting room.
• Play from starts the game in this room, optionally from a prepared state.

A Play From setup gets a room into the state you want to test, such as "the player already has the key", without playing up to it. Click + playFrom in the room's Inspector (or right-click the room and choose Add Play From method), name it, and fill in the setup in the room script:

playFrom('gotKey', () => {
  inventory.add(items.key)
})

playFrom('doorUnlocked', () => {
  flags.unlockedDoor = true
})

Each one appears in the Play from menu. On the right of the top bar, the Outlines checkbox shows the walkable areas, regions and colliders while you play, and GUIs and Characters hide those layers in the preview. These only change the preview, never the room.

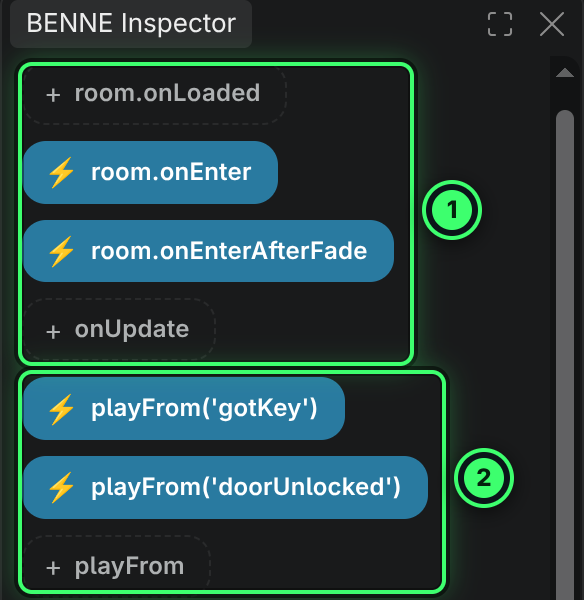

1. The room’s hooks.
2. Its Play From setups, and + playFrom to add one.

1. The room’s hooks.
2. Its Play From setups, and + playFrom to add one.

Checklist

• The room's sheet is exported to assets/images/rooms/<id>/ as <id>.png and <id>.json, with tags.
• Props are imported, with sensible zIndex values and baselines on anything characters walk around.
• Clickable props and hotspots have a collider or polygon, a walk-to point, a look-at point and a description.
• The floor has a walkable area, with holes for obstacles.
• The player character is placed in the room, and onEnter moves them to the right spot for each way in.
• Every exit has a handler that calls rooms.x.goTo().
• A Play From setup exists for each puzzle in the room.
